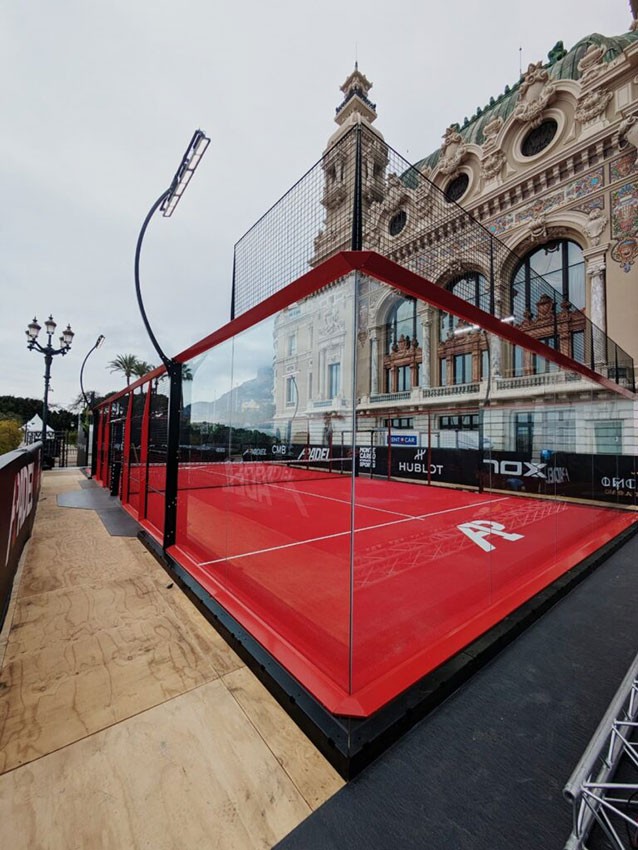

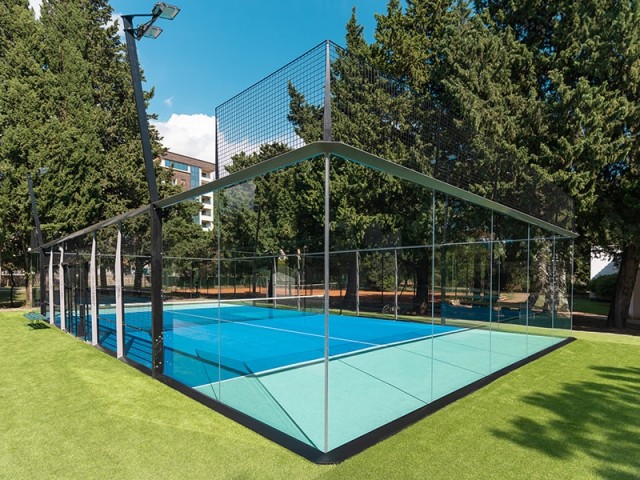

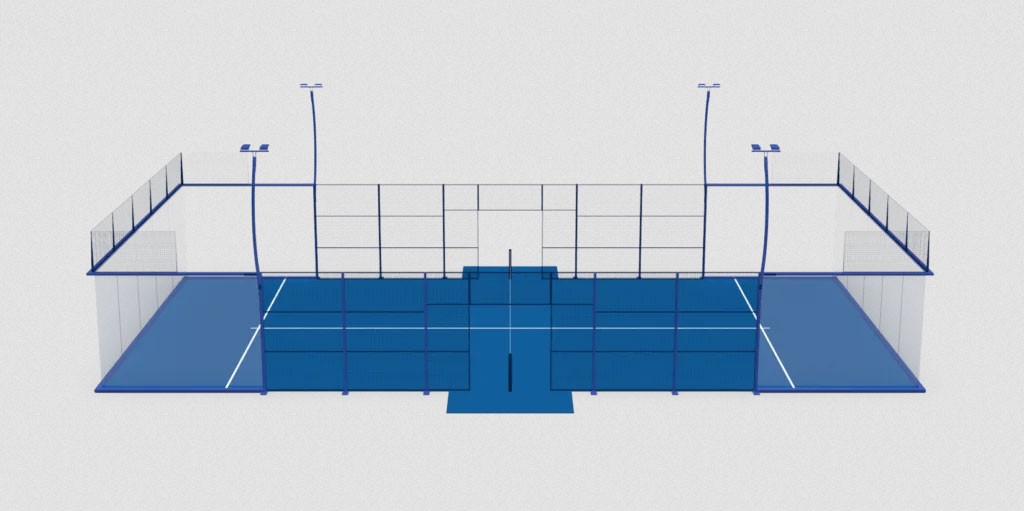

The SUPER PANORAMIC court has been designed to achieve the minimum visual impact, with no pillars in the corners, to offer maximum performance to both players and spectators. Enjoy an incredible playing experience. Feel the robustness, safety and quality. An elegant, superior and professional court only for the best.
Its superior structural strength with a distinctive minimalist design, that pushes the limits of what is technically feasible today. The Super Panoramic court exceeds all expectations. Want to play like a pro? This is the place.
Active perimeter

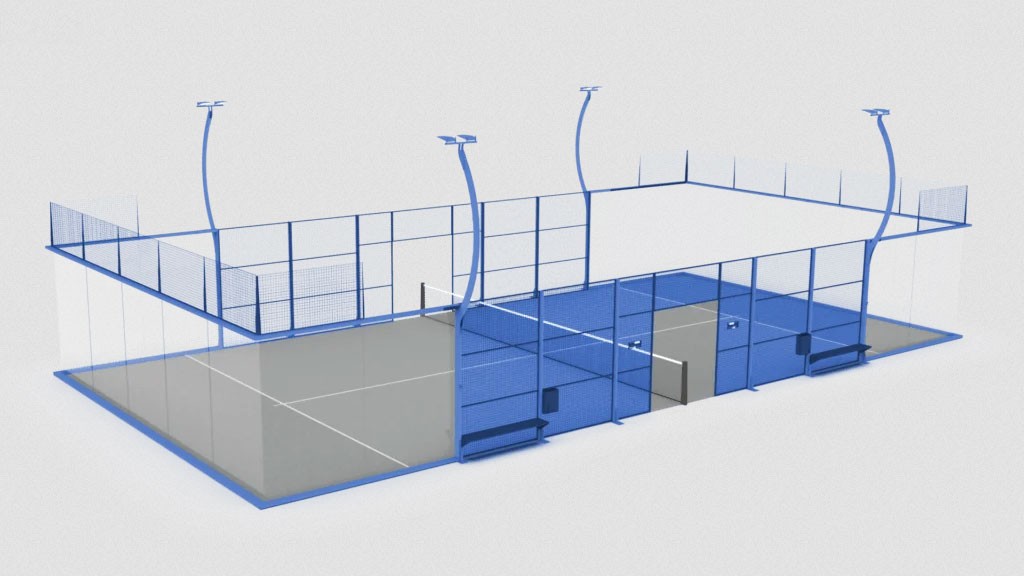

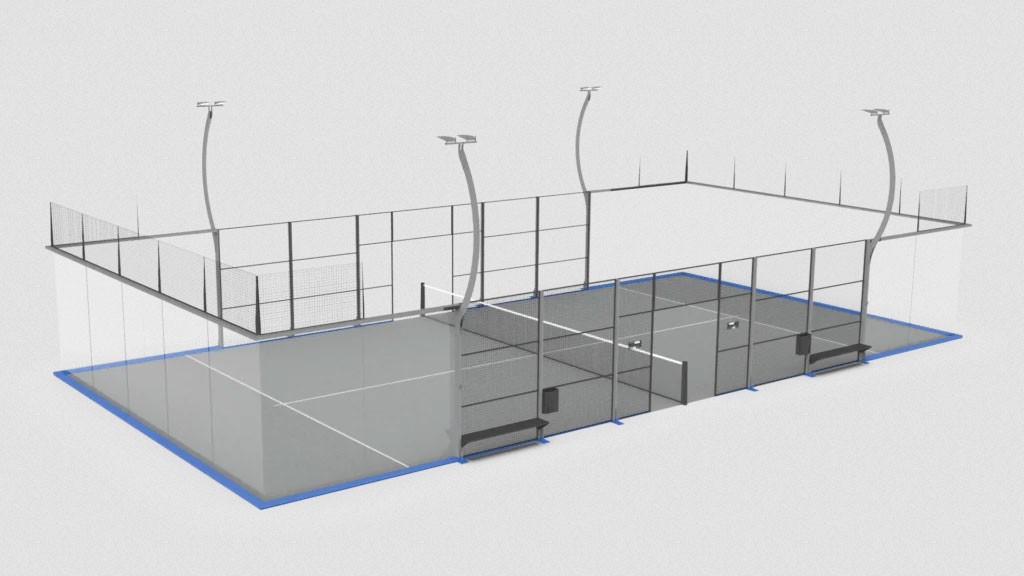

SUPER PANORAMIC walls built with 84m of hot galvanized tube 140x60x2mm along the entire perimeter of the glass walls (without tubes or metal profiles in the corners of the court), providing greater safety with the best aesthetic finish. The glass walls are anchored to the ground with 60 homologated metallic anchors. Glasses are fixed perimetrically to the structural tube and the glasses are perfectly flush with the mesh, without edges.
Electro-welded wire mesh
Fourteen units of 1x2m of mesh frames manufactured with 3mm thick perimetral plate with inner 50x50x4mm electro-welded wire mesh, installed above the glass wall, with a minimalist design to offer the best visibility for spectators and an impressive aesthetic finish.
Twelve units of 3x2m mesh frames manufactured with 3mm thick folded plates and folded mesh on vertical sides designed as an anti-injury system that at the same time provides an unbeatable aesthetic finish, guaranteeing the continuity of the homogeneous mesh.
These frames are internally reinforced with 2 tubes 40x20x2mm in order to maximize the long-term resistance against deformations caused by blows.
Galvanized steel
The metallic structure of the padel court is carbon steel S235 and hot galvanized Z275.
Support of the structure

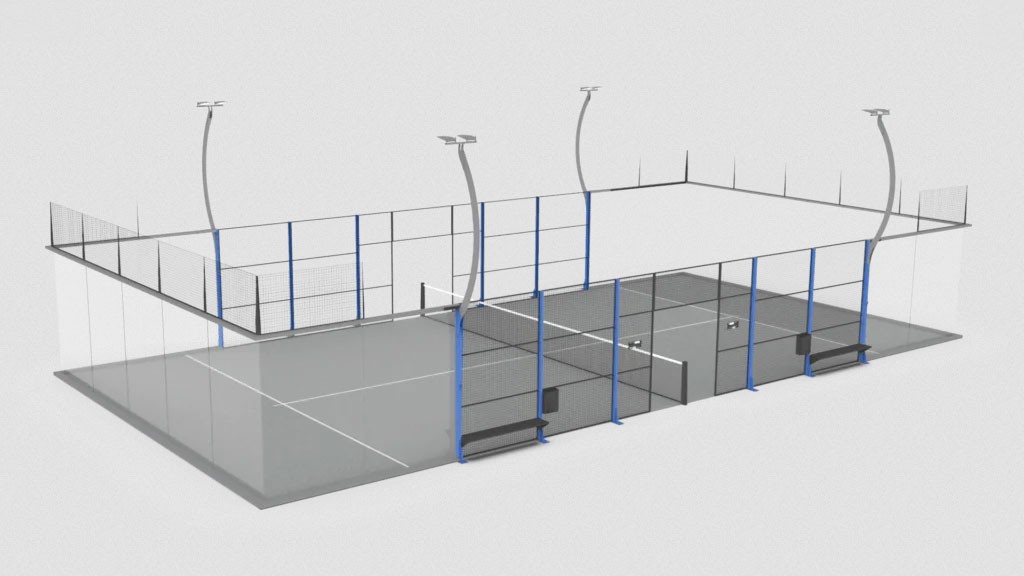

Eight pillars 100x50x2mm thick of 3m high, with anchor plates measuring 26x19x1cm thick which are reinforced with 40cm tall buttresses. Each pillar is positioned every 2m to reinforce and brace the structure, anchored to the ground using 4 homologated metallic anchors.
Metallic anchors bolts homologated by the EU
One hundred forty-four metallic anchors bolts homologated by the EU and A4 stainless steel screws.
Certified paint
Qualisteelcoat® C4H and C5VH (ISO 12944).
Net posts matching the structure
Rounded shape without corners, with an internal tensioning system accessible with a hinged lid and hidden anchor plate to avoid injuries.
World Padel Tour type open entrances
Two large open entrances in the centre of the court to facilitate players’ quick and safe access and exit.

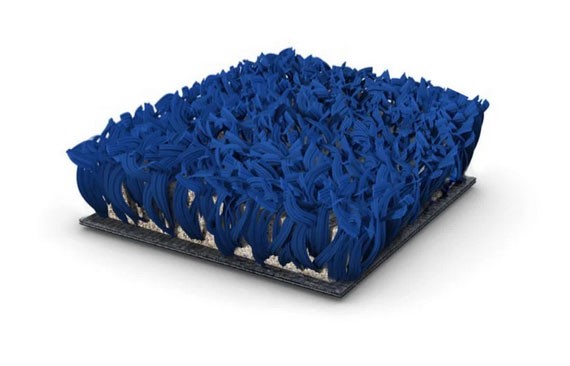

MONDO XN SUPERCOURT (Official Turf of World Padel Tour) top quality monofilament in green, red or blue colour. Turf made from STX and XNOVA, both polyethylene fibre, texturized (curly) monofilaments, 10 mm height and 250 / 160 μm thick. 6 monofilament fibres inserted per knot and 46.200 knots per m2 (total: 554.400 filaments per m2). 10.000 Dtex turf with a total fibre weight of 1.393 g/m2. Support base finished in polyurethane to ensure better long-term finish, with a total product weight of 2.208g/m2.
Color options:

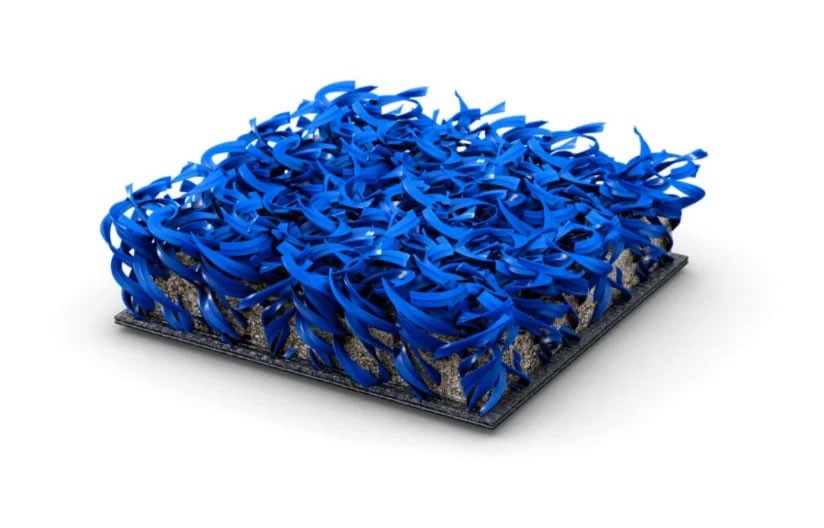

PRO TURF 240 top quality monofilament in blue, green, clay, red, pink or black colour. Turf made from polyethylene fibre, texturized (curly) monofilaments, 10 mm height and 170 μm thick. 6 monofilament fibres inserted per knot and 50.394 knots per m2 (total: 806.304 filaments per m2). 8.800 Dtex turf with a total fibre weight of 1.353 g/m2. Backing made with a dual layer woven polypropylene with fibrelocked fleece and latex, with a total product weight of 2.504/m2.
Color options:

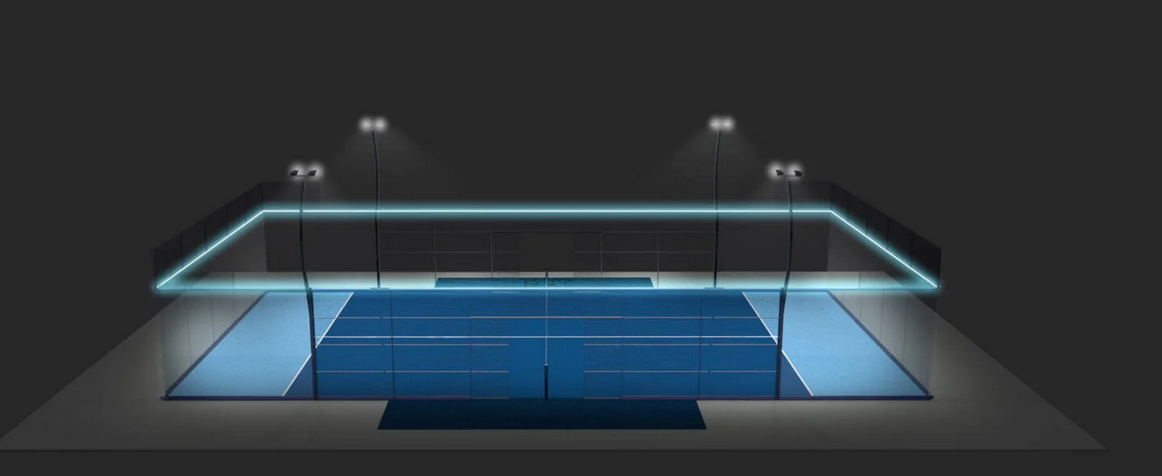

Pillars with LED ultra slim floodlights, with high luminosity, high efficiency heatsink, and high quality driver. Our Infinity court has the option of adding ambilight around its perimeter.
| Power | Luminous flux | Luminous efficiency | Power factor | Colour temperature | Beam angle | Lifetime | |
| Club version | 150 W | 22,500 Lm | 150 Lm/W | >0,95 | 4000 K | 120° | 50,000 hours |
| Master version | 200 W | 30,500 Lm | 150 Lm/W | >0,95 | 4000 K | 120° | 50,000 hours |
